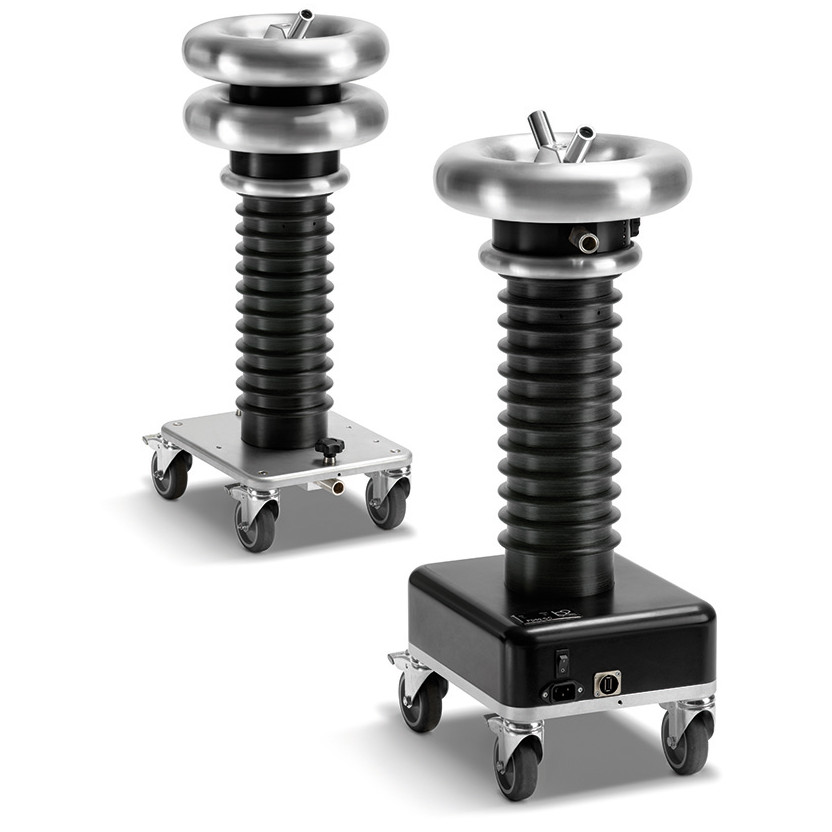

PD60-2 / PDTD60-2
Diagnostic system for medium and high voltage cables with simultaneous PD and Tan Delta measurement. Ensure reliable operation and detect faults at an early stage.
PD60-2 / PDTD60-2
Diagnostic system for medium and high voltage cables with simultaneous PD and Tan Delta measurement. Ensure reliable operation and detect faults at an early stage.
Description
PD60-2 / PDTD60-2 – Diagnostic System for Medium and High Voltage Cables
PD60-2 and PDTD60-2 are advanced diagnostic systems designed for reliable analysis of medium and high voltage cables, rotating machines, and transformers. The systems enable early detection of weaknesses, providing better conditions for preventive maintenance and reducing the risk of costly downtime.
By combining precise measurement technology with flexible use, the systems offer both portable and integrated solutions for field and laboratory environments. This makes them a powerful tool for companies working with critical infrastructure and requiring high operational reliability over time.
Efficient and Time-Saving Diagnostics
PDTD60-2 is equipped with integrated Tan Delta technology, enabling simultaneous measurement of partial discharge (PD) and Tan Delta (TD). This parallel diagnostics approach saves time and eliminates the need for cable preconditioning, which could otherwise affect measurement results negatively.
The system also allows measurements at constant frequency over different cable lengths, which is essential for comparing results from previous tests and monitoring development over time.
Flexible System with High Precision
The diagnostic system is designed for testing XLPE, PE, EPR, and PILC cables up to 100 km. With fault localization accuracy of up to 1% and a resolution of 0.1 pC per 0.1 meter, even small deviations can be identified with high precision.
In combination with the HVA60 unit, PDTD60-2 can be expanded into a complete system for testing up to 60 kV, providing a scalable solution tailored to different needs and applications.
Benefits in Practice
- Simultaneous PD and TD diagnostics for faster analysis
- Precise localization of partial discharge faults
- Stable sinusoidal output voltage with consistent frequency
- Effective noise suppression through filtering
- Manual and automatic operation modes
- Powerful database for measurement comparison and analysis
Standards and Reliability
PD60-2 and PDTD60-2 comply with international standards and guidelines, including IEEE 400.2 and 400.3 as well as IEC 60270. The systems are also compatible with relevant industry standards such as HD 620, CEI EN 50393, and IEC 60502-2, ensuring high quality and reliable measurement results in all types of projects.
An Investment in Reliable Operation
With PD60-2 and PDTD60-2, you get an advanced diagnostic system that not only improves the reliability of your cable systems but also contributes to lower maintenance costs and longer equipment lifespan. Through early detection and precise analysis, you can work proactively and avoid unexpected operational interruptions.
